IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

Shenzhen A.N.G Technology Co., Ltd
Contact Now
    Buy cheap IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal from wholesalers

    Buy cheap IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal from wholesalers
    • Buy cheap IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal from wholesalers
    • Buy cheap IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal from wholesalers
    • Buy cheap IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal from wholesalers
    • Buy cheap IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal from wholesalers

    IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

    Ask Lasest Price
    Brand Name : A.N.G
    Model Number : AR-CM388T
    Certification : CE,ISO,ROHS
    Payment Terms : T/T,Paypal,Western Union, MoneyGram
    Supply Ability : 100,000pcs per month
    Delivery Time : 2-15 Days
    Price : Depends on quantities
    • Product Details
    • Company Profile

    IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

    IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

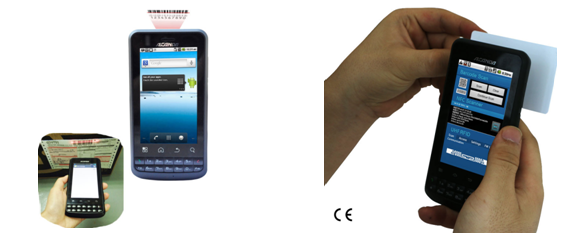

    CM388T is upgrade model from CM380A, it is a high speed Quad-core industrial Android handheld terminal. It integrated 1D laser barcode reader and NFC for easy data capture. It supports Wi-Fi, Bluetooth, GPS, GSM / 3G, which make communication conveniently. With protection rate of IP65, it can withstand use in all kinds of rough environment.


    Data Sheet:

    O/SAndroid OS v4.1.2
    CPUQualcomm MSM8625Q, Quad-Core 1.2GHZ
    Memory1G RAM +4G Flash ROM
    Expansion(microSD) : 32G (Maximum)
    Display3.8'' Capacitive Multi-touch screen; Resolution: 800*480 dpi
    Entry Method12 alpha/numeric keys, 2 telephone keys
    Virtual keyboard entry
    Input method: Handwriting, keypad
    PortUSB2.0, support OTG
    Power3.7V Li-Polymer 1900mAh, 4000mAh (optional)
    Standby time:72 hours
    Charging time: 5-6 hours
    Communication

    WLAN: Wi-Fi IEEE802.11b/g/n
    GSM/GPRS/EDGE 850/900/1800/1900MHz
    WCDMA 2100MHz, EVDO 800MHz
    Bluetooth 4.0

    NFCHF:13.56M (ISO14443A/B, 15693 Protocol), reading distance 4cm.
    Camera5.0 Mega Pixel camera, auto focus, with LED light
    Barcode Scanner

    1D: Built-in 1D laser scanner
    Support: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93, UCC/EAN-128,GS1 Databar,HIBC,etc
    2D: readable QR code via camera

    GPSBuilt-in SIRF GPS, support A-GPS
    PhysicalSize(L x W x H):135 x 69 x 16 mm
    Weight:150g (Include battery )
    Case: Black
    Support

    Gravity Sensor
    Electronic Compass
    Light Sensor
    Distance Sensor

    DurabilityTemperature in operation: -10 to 60ºC
    Temperature in storage: -20 to 65 ºC
    Humidity in operation: 5% - 90% (non-condensing)
    Humidity in storage: 5% - 95% (non-condensing)
    Drop Test1.2 meter onto concrete
    Protect RateIP65





    Comparison with old version CM380A:

    ItemCM380ACM388
    O/SAndroid OS v4.0Android OS v4.1.2
    CPUQualcomm MSM7227A, Single core 1GHZQualcomm MSM8625Q, Quad-Core 1.2GHZ
    Memory512MB RAM +4G Flash ROM1G RAM +4G Flash ROM
    PortUSB2.0USB2.0, support OTG
    CommunicationWLAN: Wi-Fi IEEE802.11b/g
    GSM/GPRS
    3G: WCDMA 2100MHz
    Bluetooth 2.0
    WLAN: Wi-Fi IEEE802.11b/g/n
    GSM/GPRS/EDGE 850/900/1800/1900MHz
    WCDMA 2100MHz, EVDO 800MHz
    Bluetooth 4.0
    RFIDHF:13.56M (ISO14443A Protocol)NFC:13.56M (ISO14443A/B, 15693 Protocol)



    Main Features:


    1. High Performance CPU & large RAM

    Qualcomm MSM8625Q, Quad-Core 1.2GHZ CPU
    LPDDR2 RAM 1GB
    Make the device run faster and more stable.


    2,1D laser barcode reader & NFC reader


    Multi-functions for easy data capture.


    3,GSM/WCDMA/EVDO, WiFi, Blutooth, GPS


    4,USB OTG port


    It can connect with all kinds of external devices via OTG cable.

    Read data from USB disk, camera etc.

    If you are interested in this reader, please welcome to send us an inquiry!
