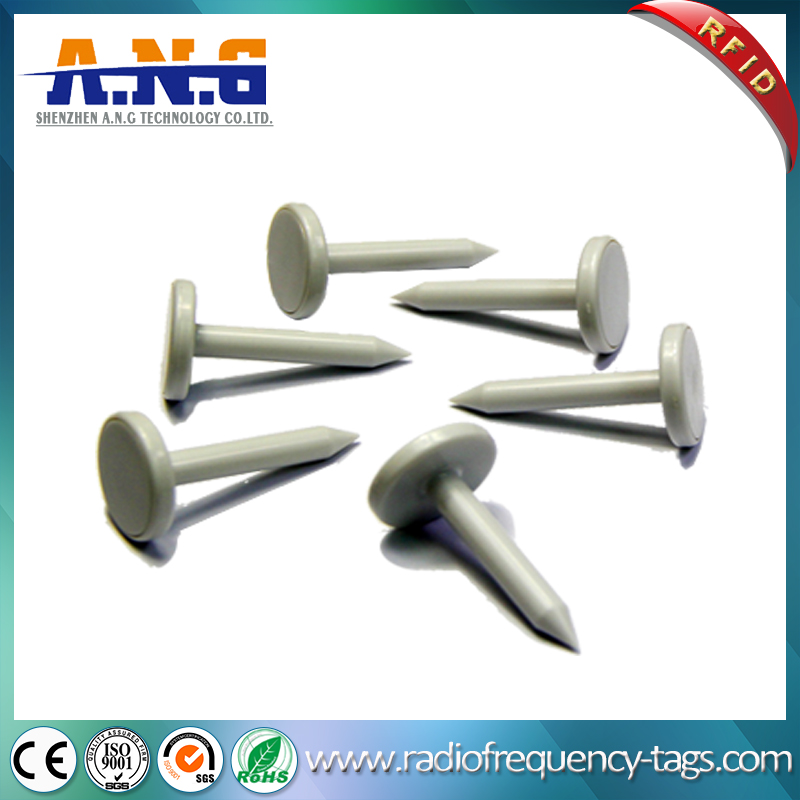

860-960Mhz Programmable Passive Rfid Tags , RFID Nail Tag For Tree / Wood Tracking

Nail tag has a good performance in waterproof and resistance of aggressive chemicals. And it can be reader any direction, workers can make a greatly improve in working efficiency. Easy to install is an another important character for nail tag. The tags can be installed as long as there is a narrow space. For example, people just need to make a small hole in the wood, then insert nail tag with a rubber plastic hammer.

UHF follows the EPCglobal Gen2 standard and uses the 860—960Mhz frequency band to provide fast data transfer rates and much longer read ranges (up to 10m) compared to either LF or HF cards. UHF labels and tags are used extensively in warehouse and goods tracking while UHF cards are popular for location and attendance tracking applications. UHF is negatively affected by materials in the environment such as metals and liquids, but is the best choice for applications that require a long read range and simultaneous reading of a large number of tags. Common UHF chips offered by Cardzgroup include:

Alien Higgs 3: EPC Class1 Gen2 chip with 96—480bit EPC memory, 512bit user memory and 64bit UTID with memory read protection.

Alien Higgs 4: EPC Class1 Gen2 chip with 128bit EPC memory, 128bit user memory and 64bit UTID with memory read protection and pre-encoded with unalterable enterprise-wide serialization scheme.

Impinj Monza 4D: EPC Class1 Gen2 chip with 128bit EPC memory, 32bit user memory and 96bit UTID with support for omni-directional antennas.

Impinj Monza 4E: EPC Class1 Gen2 chip with up to 496bit EPC memory, 128bit user memory and 96bit serialized TID with support for omni-directional antennas.

Impinj Monza 4QT: EPC Class1 Gen2 chip with 128bit EPC memory, 512bit user memory and 96bit serialized TID with support for omni-directional antennas and ability to create a separate public and private (password protected) data profile on the same chip.

Impinj Monza 5: EPC Class1 Gen2 chip with up to 128bit EPC memory, 32bit user memory and 48bit serialized TID.

Feature

1. Chip:Alien H3
2. Frequency: 860~960MHz
3. Protocol: ISO18000-6C
4. Memory: 512bits
5. Read/write Times: 100,000 times
6. Data Storage: 10 years
7. Diameter :22mm.or OEM

8. Length: 41mm or OEM
9. Thickness: 6mm
10. Material: ABS
11. Antenna: Aluminium Foil
12. Read Distance: 1-15cm (depends on the card reader and antenna)
13. Working temperature: -40 °C~ 85 °C
14. Store temperature: -20 °C ~45 °C

If you are interested in this tag, please welcome to send us an inquiry!
