| Brand Name : | ANG |
| Model Number : | 8360 |
| Certification : | ISO |
| Payment Terms : | T/T, Western Union,Paypal |
| Supply Ability : | 500,000pcs per month |
| Delivery Time : | 2~5 days |

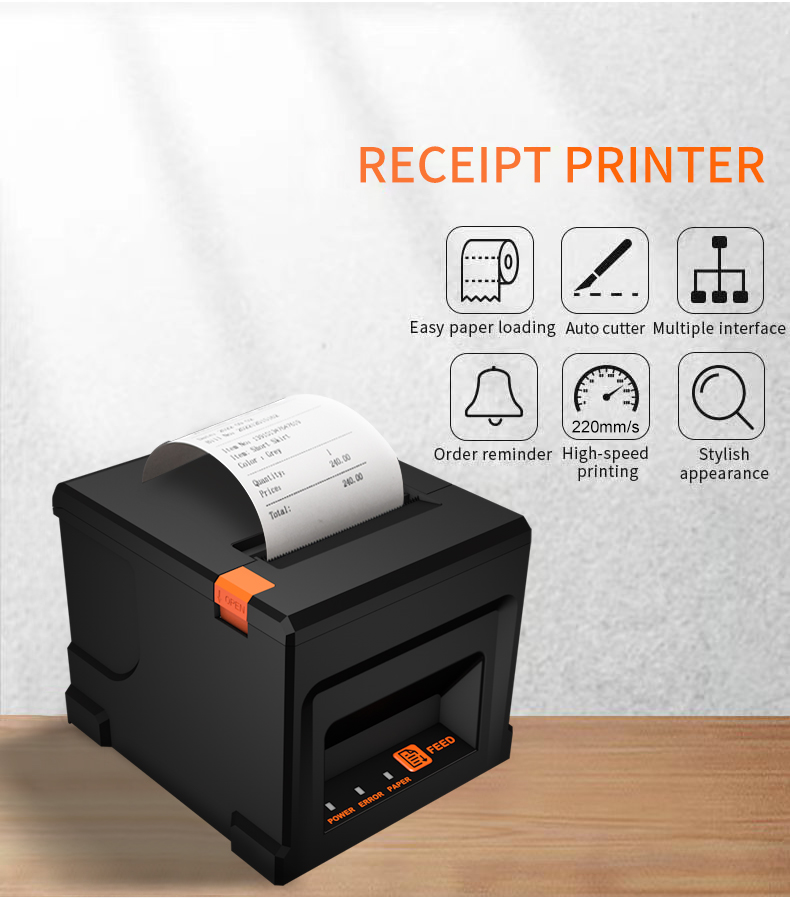

High Quality USB Label Printer 80mm Thermal Printer Bluetooth Cashier Printer
| Specifications | |
| Print Method | Direct Line Thermal |
| Interfaces | USB / LAN / Bluetooth (optional) |
| Print Comand | ESC / POS command |
| Print Speed | 220mm/s |
| Resolution | 203DPI (8dot/mm) |
| TPH Reliability | 100km |
| Auto Cutter | Partial |
| Cutter Life | 1.5 million cuts |
| Logo | support downloading and printing logo |
| Line Spacing | 3.75mm (Adjustable by commands) |
| Extension Character Sheet | PC437(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),PC858,IranII,Latvian,Arabic,Thai,PT151(1251) |
| Character Size | ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese, Traditional Chinese:3.0×3.0mm(24×24 dots) |
| Supported Code: | 1D: UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF /
CODABAR / CODE93 / CODE128 2D: QR CODE,PDF417 |
| Input Buffer | 96K bytes |
| NV Flash | 256K bytes |
| Driver | Win2003 / WinXP / Win7 / WIN8 / WIN10 / Linux ; Support IOS / Android |
| Power | Input:AC 110V/220V, 50～60Hz ; Output:DC 24V/2.5A |
| Paper | |
| Paper Types | Thermal Roll Paper |
| Paper Width | 79.5±0.5mm / φ 80 mm |
| Print Width | 72mm |
| Paper Thickness | 0.06-0.08 mm |
| Package | |
| Printer Dimension | 16*13.5*12.15 CM |
| Printer N.W. | 0.72 kg |
| Package | 1pc with accessories/Box, 12 boxes/CTN |
| Accessories | Manual, USB Cable, Power Adapter, Paper Roll |
| Box Dimension | 19.8*18.4*13.9 CM |
| Box G.W. | 1.1 Kgs |
| CTN Dimension | 61.4*38.8*29.8 CM |
| CTN G.W. | 14 Kgs |
| Environmental Requirements | |
| Work Environment | Temperature (0～45℃) humidity(10～80%) |
| Storage Environment | Temperature(-10～60℃) humidity(10～90%) |
| Mechanical Noise | less than 60dB |
|
|
